Product List by different use
C type : Cleaning Brush

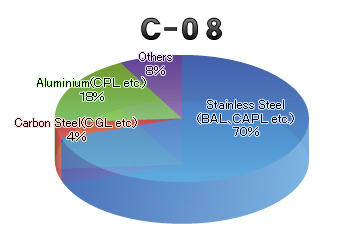

Brush Name : C-08C-08 is the brush which is consisted of micro filaments in “wipe” category. This is applicable for soft or mild materials and is expected to clean the surface, which is not allowed any scratches.
Reference line : Bright Annealing Line, Aluminum Cleaning Line, Copper Cleaning Line and etc.

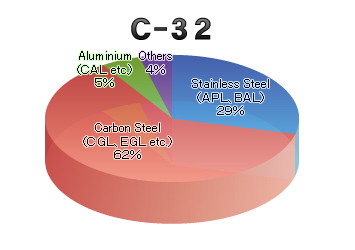

Brush Name : C-32C-32 is the mixture of "Wiping" and "Cleaning" brush rolls, called "Hybrid brush". This is one of the most effective brush products to remove oil and iron fines ideally.
Reference line : Continuous Galvanizing Line, Continuous Annealing Line, Electrolytic Cleaning Line and any Cleaning Line.
M type : Middle abrasive brush
Brush name : M-37
M-37 is categorized in "Polishing" or "Light Abrasive" brush. This is mainly used in the skinpass mill roll for removal of the rolling powders.
Reference line : Continuous Galvanizing Line (for skinpass mill roll)
M-37 is categorized in "Polishing" or "Light Abrasive" brush. This is mainly used in the skinpass mill roll for removal of the rolling powders.
Reference line : Continuous Galvanizing Line (for skinpass mill roll)

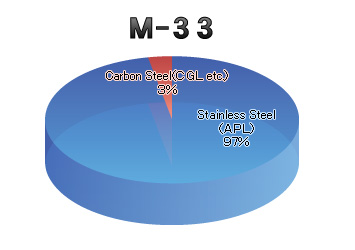

Brush Name : M-33M-33 is categorized in "Light/Middle Abrasive" brush. This remarkably removes the oxide scale of the hot rolled stainless steel surface and enhances pickling efficiency.
Reference line :
Stainless Steel…Hot rolled Annealing and Pickling Line (Prior to or after acid tanks)
Carbon Steel…Continuous Pickling Line
H type : Heavy abrasive brush
Brush Name : H-51
H-51 is categorized in heavy abrasive brush, and performed higher abrasive effectiveness than M-33 (Brush Name). Thus this is adopted in the line which is required high scale removal performance. Also, it is used for homogenization of the roughness of the strip surface.
Reference line :
Carbon Steel…Continuous Galvanizing Line etc.
Others… Section of Line for Scale Removal
H-51 is categorized in heavy abrasive brush, and performed higher abrasive effectiveness than M-33 (Brush Name). Thus this is adopted in the line which is required high scale removal performance. Also, it is used for homogenization of the roughness of the strip surface.
Reference line :
Carbon Steel…Continuous Galvanizing Line etc.
Others… Section of Line for Scale Removal
D type : Descaling brush

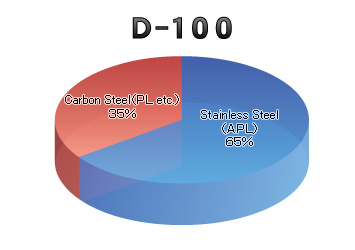

Brush name : D-100D-100 is the descaling brush, and one of the most aggressive brush roll. This is mainly used as mechanical descaler at the prior to the first acid tank in the pickling section (Stainless).
Reference line :
Stainless Steel…Hot rolled Annealing and Picking Line (Prior to the first acid tank)
Carbon Steel…Continuous Picking Line
F type : Fine polishing brush
Brush name : F-21F-21 is the special typed cleaning brush roll. This is used for cleaning the strip surface at high speed line or galvanizing line which is required superior cleaning performance.
Reference line :
Carbon Steel…Continuous Galvanizing Line, Continuous Annealing Line and etc.
Stainless…Cold rolled Annealing and Pickling Line
Brush name : F-22F-22 has a little higher abrasive effect compare to F-21. This is also adopted in the lines required better cleaning performance.
Reference line :
Continuous Galvanizing Line, Continuous Annealing Line and etc.
Brush name : F-105F-105 has unique feature which can be operated under the dry condition at skinpass line (No water or coolant is required). And this is used for continuous removal of milling powders from the roll surface.
Reference Line :
Skinpass Mill Line (For tin-plate), Temper Mill Line (For tin-plate) and etc.
